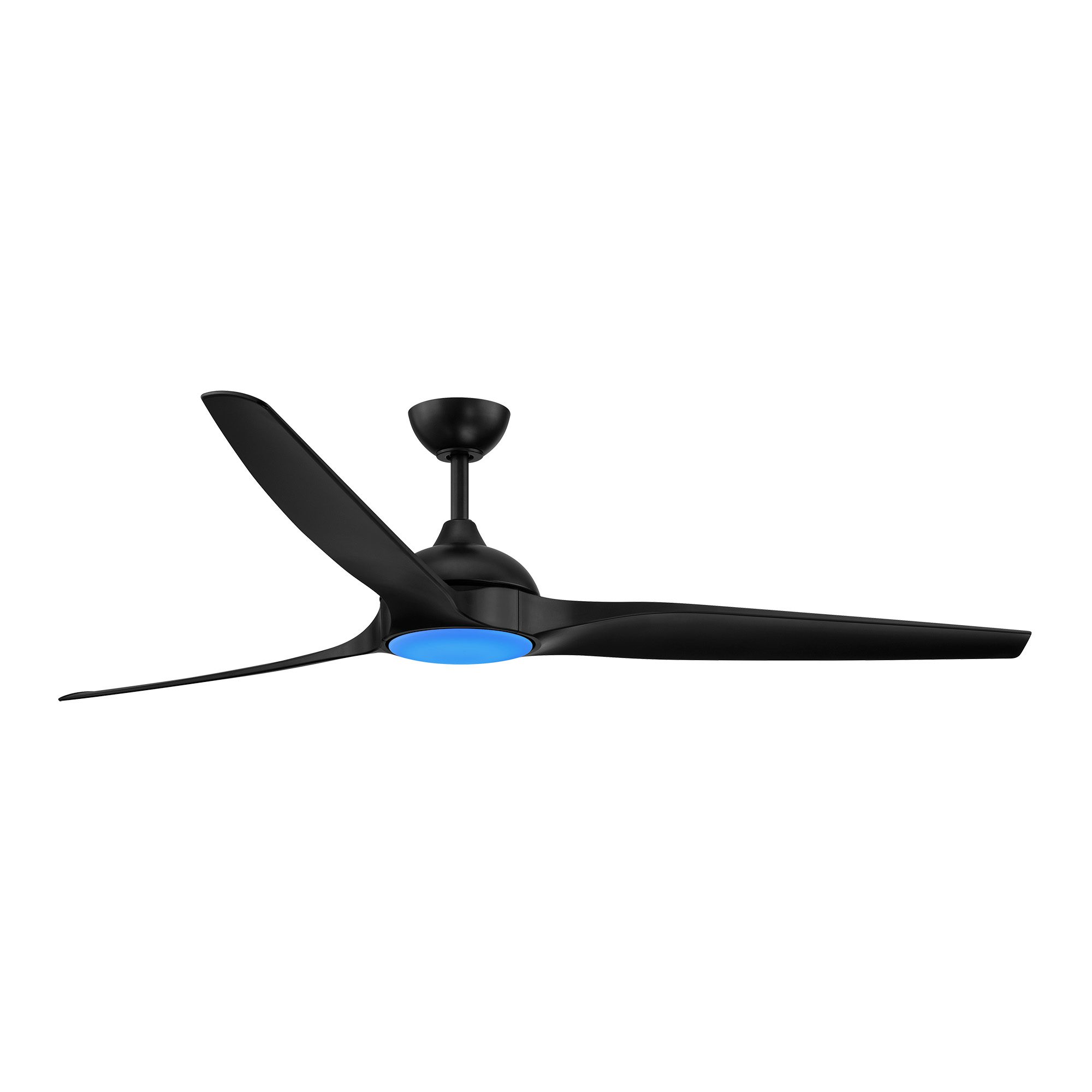

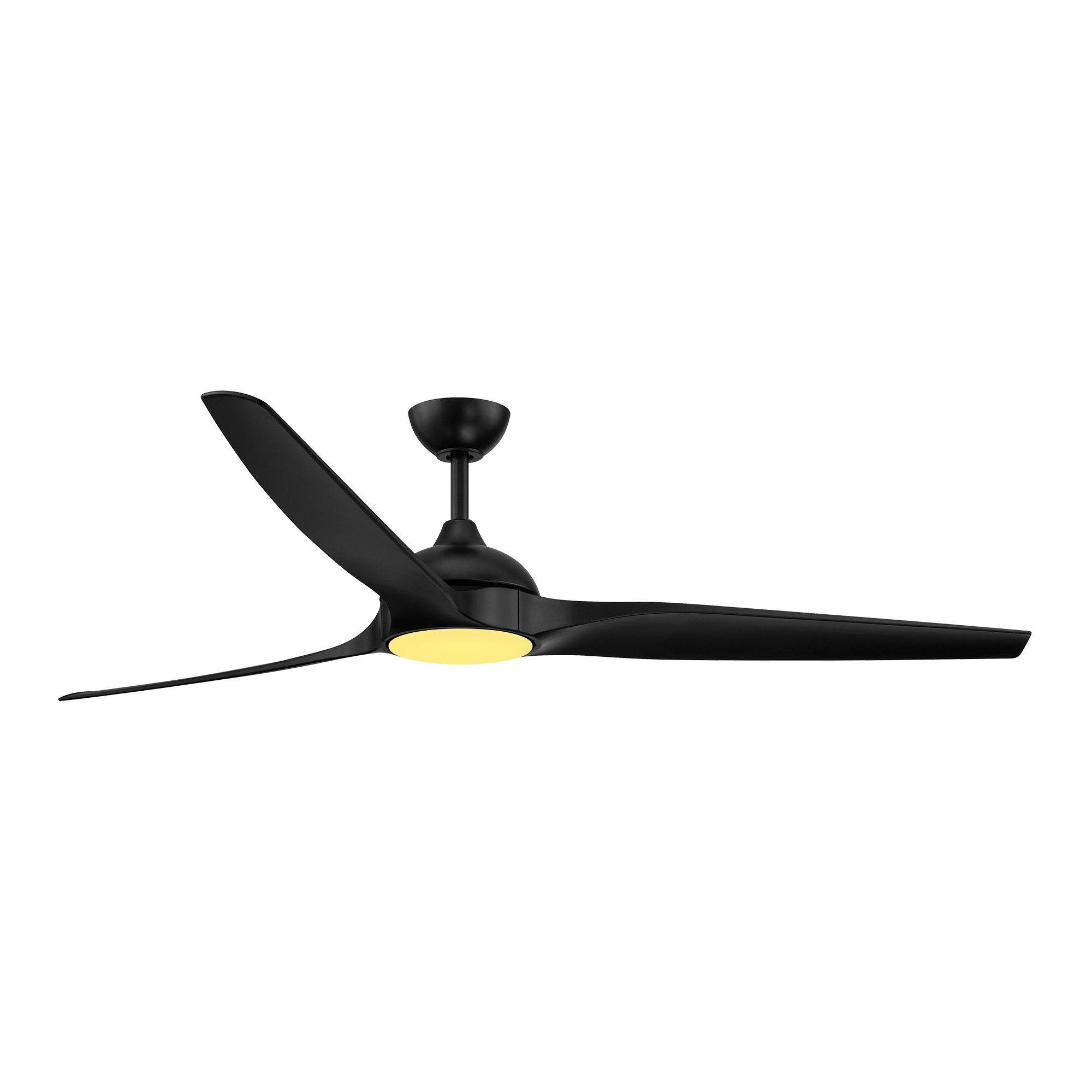

Arcas 72" Integrated LED Selectable CCT & RGB Outdoor Ceiling Fan

Item Number: FR-ARC72RGB-MB Categories , , , Tag

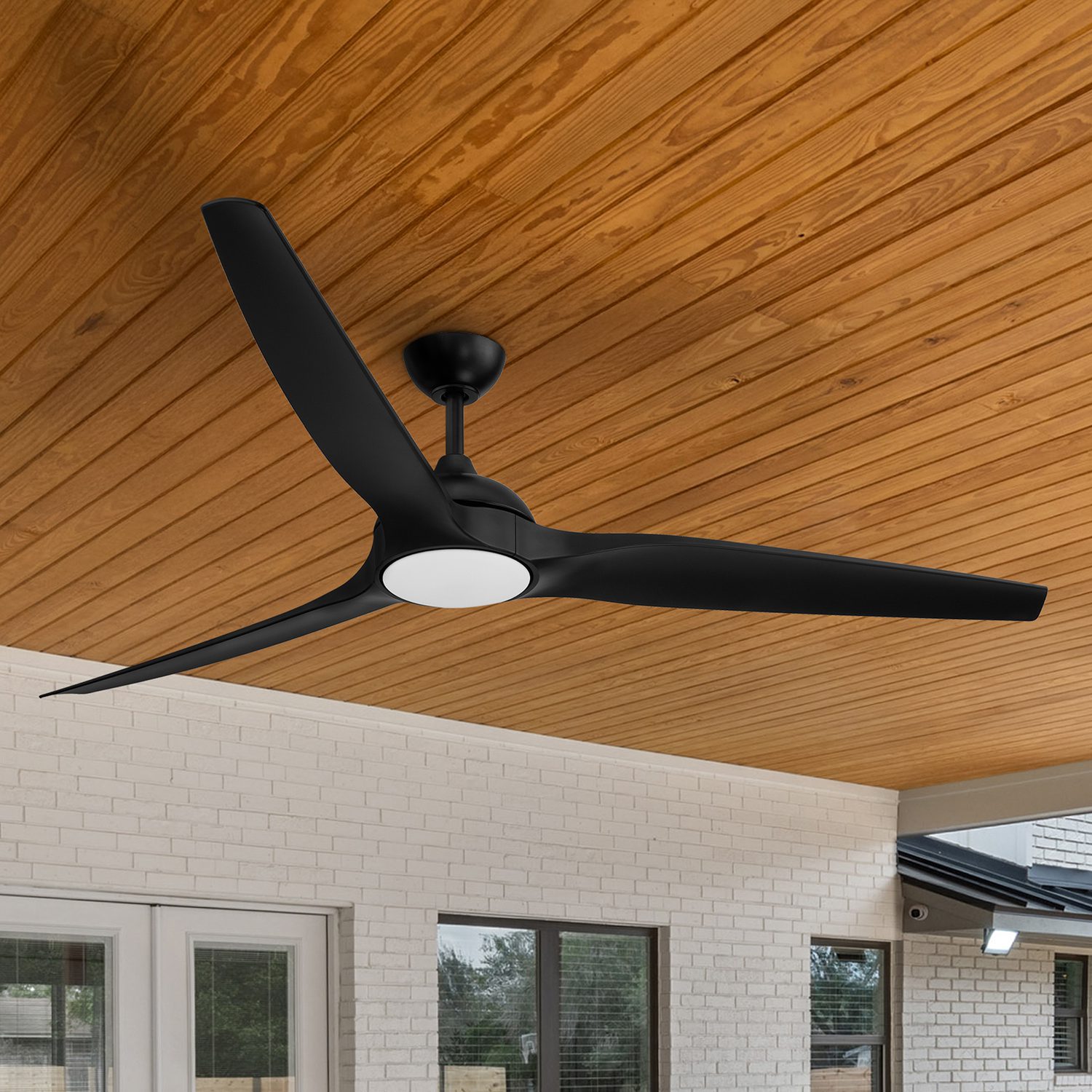

The Arcas collection of remote-controlled ceiling fans from Designers Fountain is wet-rated for outdoor use. These modern fans feature 6-speed DC motors that produce a max airflow of 7,139 CFMs. Each of the 3 blades are made from durable ABS to withstand the elements. The integrated LED light kit will not only save you money, but it also provides 5 CCT selections (2700K, 3000K, 35000K, 4000K, and 5000K) and 7 RGB color selections (red, orange, yellow, green, blue, indigo, and purple). Arcas is recommended for areas of 600 square feet or less, and should be hardwired to an in-ceiling power source of 120V. Installation is a breeze with the included instructions and mounting/wiring hardware right in the box.

Shade Material

Glass

Shade Open

No

Dampness Rating

Wet

Light Source

Integrated LED

Wattage

20

Voltage

120

Dimming

Yes

Modern matte black ceiling fan for indoor and outdoor use

Six-speed fan with DC motor creates a max airflow of 7,139 CFM

Integrated LED produces 850 lumens with 5 CCT and 7 RGB settings

Included remote controls fan speed, dimming, color and CCT selection, and many more features

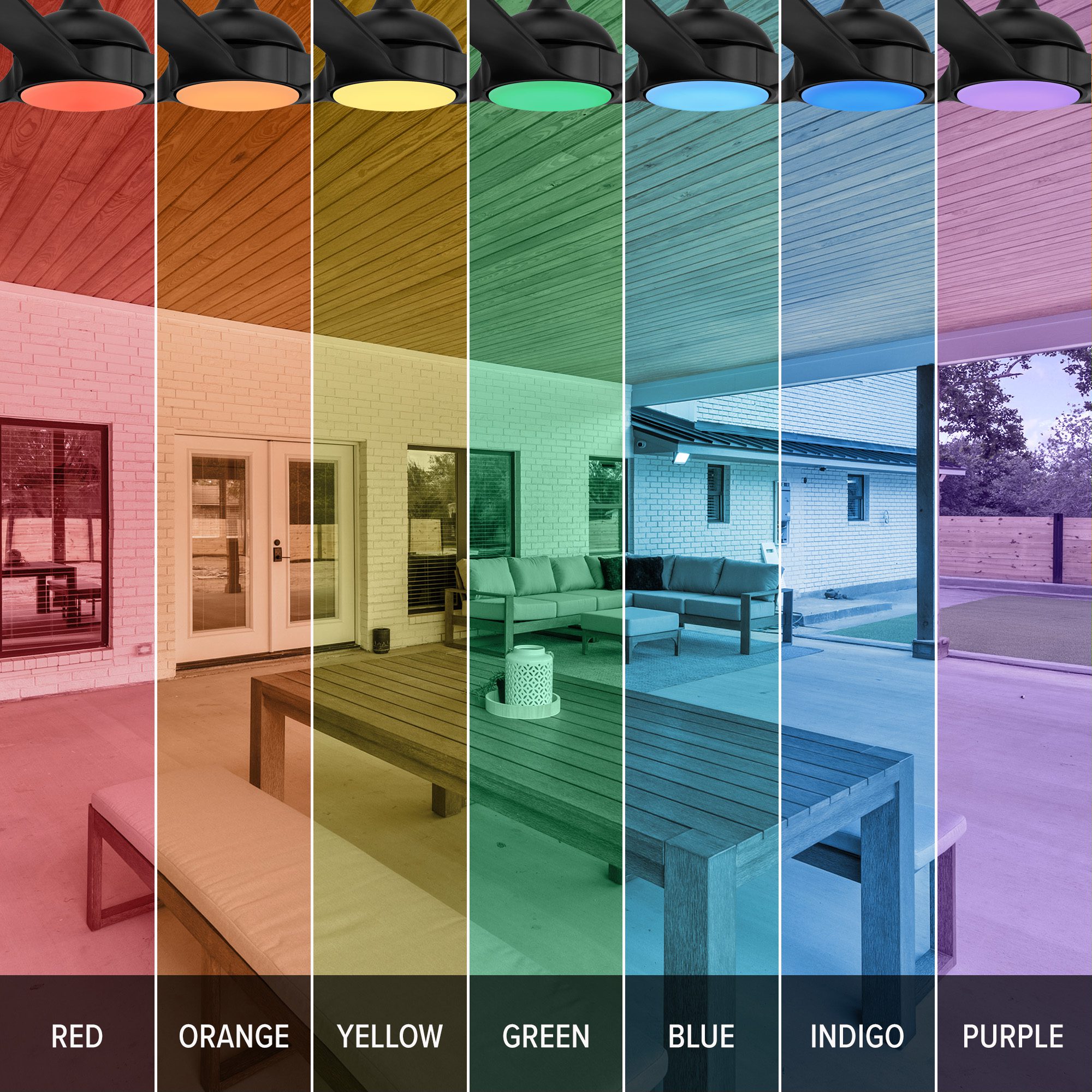

LED supports 7 RGB settings: red, orange, yellow, green, blue, indigo, and purple

Choose from 5 CCT settings: 2700K, 3000K, 3500K, 4000K, and 5000K

The 3 ABS blades are built to withstand the elements

Recommended for an area of 600 sq. ft. or less

Accommodates a sloped ceiling of up to 13 degrees

Wet rated for outdoor installation

Hardwire to a 120-Volt in-ceiling power source

Easy-to-follow installation instructions, mounting hardware, and wiring hardware included in the box

Limited warranties for the following durations: 10 years for the fan, 30,000 hours for the LED light kit, and 1 year for all other fan components

UPC

46335128569

Location

Outdoor

Warranty

Limited 10-year

Electrical Certification

cETLus

LED CRI

90+

LED Life (hours)

30,000

LED Replacement Wattage

120

Lumens

850

Efficacy

42.5

CCT

Selectable 5CCT

RGB Color

Selectable 7 RGB

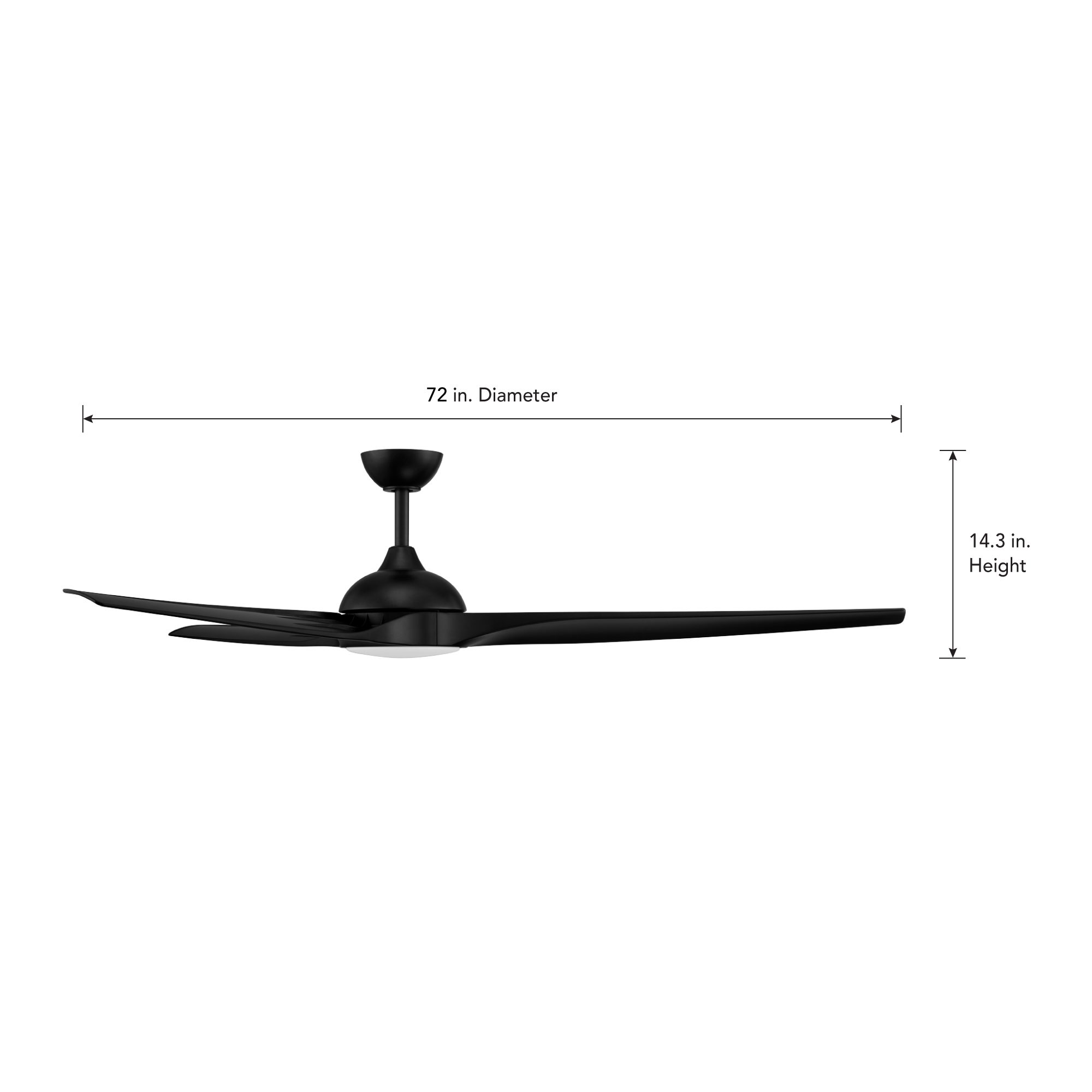

Fixture Diameter (in)

72

Fixture Height (in)

14.3

Canopy Width (in)

5.9

Canopy Depth (in)

5.9

Canopy Height (in)

2.4

Net Weight (lb)

19.8

Slope Angle

13

Pull Chain

No

Remote

Yes

App / Voice

No

Motor Type

DC

RPM Range

53-160

# of Speeds

6

Recommended Room Size

600

Max Airflow (CFM)

7139

Blade Finish

Matte Black

Blade Material

ABS

# of Blades

3

  • Modern matte black ceiling fan for indoor and outdoor use
  • Six-speed fan with DC motor creates a max airflow of 7,139 CFM
  • Integrated LED produces 850 lumens with 5 CCT and 7 RGB settings
  • Included remote controls fan speed, dimming, color and CCT selection, and many more features
  • LED supports 7 RGB settings: red, orange, yellow, green, blue, indigo, and purple
  • Choose from 5 CCT settings: 2700K, 3000K, 3500K, 4000K, and 5000K
  • The 3 ABS blades are built to withstand the elements
  • Recommended for an area of 600 sq. ft. or less

Modern matte black ceiling fan for indoor and outdoor use

Six-speed fan with DC motor creates a max airflow of 7,139 CFM

Integrated LED produces 850 lumens with 5 CCT and 7 RGB settings

Included remote controls fan speed, dimming, color and CCT selection, and many more features

LED supports 7 RGB settings: red, orange, yellow, green, blue, indigo, and purple

Choose from 5 CCT settings: 2700K, 3000K, 3500K, 4000K, and 5000K

The 3 ABS blades are built to withstand the elements

Recommended for an area of 600 sq. ft. or less

Accommodates a sloped ceiling of up to 13 degrees

Wet rated for outdoor installation

Hardwire to a 120-Volt in-ceiling power source

Easy-to-follow installation instructions, mounting hardware, and wiring hardware included in the box

Limited warranties for the following durations: 10 years for the fan, 30,000 hours for the LED light kit, and 1 year for all other fan components

Product Info

SKU FR-ARC72RGB-MB Style: , , , Collection:

The Arcas collection of remote-controlled ceiling fans from Designers Fountain is wet-rated for outdoor use. These modern fans feature 6-speed DC motors that produce a max airflow of 7,139 CFMs. Each of the 3 blades are made from durable ABS to withstand the elements. The integrated LED light kit will not only save you money, but it also provides 5 CCT selections (2700K, 3000K, 35000K, 4000K, and 5000K) and 7 RGB color selections (red, orange, yellow, green, blue, indigo, and purple). Arcas is recommended for areas of 600 square feet or less, and should be hardwired to an in-ceiling power source of 120V. Installation is a breeze with the included instructions and mounting/wiring hardware right in the box.

Shade Material

Glass

Shade Open

No

Dampness Rating

Wet

Light Source

Integrated LED

Wattage

20

Voltage

120

Dimming

Yes

Modern matte black ceiling fan for indoor and outdoor use

Six-speed fan with DC motor creates a max airflow of 7,139 CFM

Integrated LED produces 850 lumens with 5 CCT and 7 RGB settings

Included remote controls fan speed, dimming, color and CCT selection, and many more features

LED supports 7 RGB settings: red, orange, yellow, green, blue, indigo, and purple

Choose from 5 CCT settings: 2700K, 3000K, 3500K, 4000K, and 5000K

The 3 ABS blades are built to withstand the elements

Recommended for an area of 600 sq. ft. or less

Accommodates a sloped ceiling of up to 13 degrees

Wet rated for outdoor installation

Hardwire to a 120-Volt in-ceiling power source

Easy-to-follow installation instructions, mounting hardware, and wiring hardware included in the box

Limited warranties for the following durations: 10 years for the fan, 30,000 hours for the LED light kit, and 1 year for all other fan components

UPC

46335128569

Location

Outdoor

Warranty

Limited 10-year

Electrical Certification

cETLus

LED CRI

90+

LED Life (hours)

30,000

LED Replacement Wattage

120

Lumens

850

Efficacy

42.5

CCT

Selectable 5CCT

RGB Color

Selectable 7 RGB

Fixture Diameter (in)

72

Fixture Height (in)

14.3

Canopy Width (in)

5.9

Canopy Depth (in)

5.9

Canopy Height (in)

2.4

Net Weight (lb)

19.8

Slope Angle

13

Pull Chain

No

Remote

Yes

App / Voice

No

Motor Type

DC

RPM Range

53-160

# of Speeds

6

Recommended Room Size

600

Max Airflow (CFM)

7139

Blade Finish

Matte Black

Blade Material

ABS

# of Blades

3

Shade

Shade Material

Glass

Shade Open

No

  • Fixture Width (in)
    N/A”
  • Fixture Height (in)
    14.3″
  • Fixture Depth (in)
    N/A”
  • Maximum Fixture Height (in)
    N/A”
  • Fixture Extension (in)
    N/A”
  • Shade Width (in)
    N/A”
  • Shade Height (in)
    N/A”
  • Shade Depth (in)
    N/A”
  • Canopy Width (in)
    5.9″
  • Canopy Depth (in)
    5.9″
  • Canopy Height (in)
    2.4″
  • Backplate Width (in)
    N/A”
  • Backplate Depth (in)
    N/A”
  • Backplate Height (in)
    N/A”
  • Net Weight (lb)
    19.8 lbs
Fixture Diameter (in)

72

Fixture Height (in)

14.3

Canopy Width (in)

5.9

Canopy Depth (in)

5.9

Canopy Height (in)

2.4

Net Weight (lb)

19.8

  • Light Source
    Integrated LED
  • Bulbs Required
    N/A
  • Socket Base
    N/A
  • Bulbs Included
    N/A
  • Wattage
    20
  • Voltage
    120
  • Dimming
    Yes
  • Led Cri
    90+
  • Led Life Hours
    30,000
  • Lumens
    850
  • Efficacy
    42.5
  • Cct
    Selectable 5CCT
  • Rgb Color
    Selectable 7 RGB
  • Smart Technology
    N/A
  • Dark Sky
    N/A
  • Motion Detector
    N/A
Light Source

Integrated LED

Wattage

20

Voltage

120

Dimming

Yes

LED CRI

90+

LED Life (hours)

30,000

LED Replacement Wattage

120

Lumens

850

Efficacy

42.5

CCT

Selectable 5CCT

RGB Color

Selectable 7 RGB

  • 6″ Rods
    N/A
  • 12″ Rods
    N/A
  • 18″ Rods
    N/A
  • Cords Cables
    N/A
  • Chain Length Ft (ft)
    N/A’
  • Wire Length Ft (ft)
    N/A’
  • Sloped Ceiling
    N/A
  • Mount Up Or Down
    N/A
Slope Angle

13

  • Dampness Rating
    Wet
  • Warranty
    Limited 10-year
  • Electrical Certification
    cETLus
  • Ada
    N/A
  • Energy Star
    N/A
  • Title 24
    N/A
  • Title 20
    N/A
Dampness Rating

Wet

Warranty

Limited 10-year

Electrical Certification

cETLus

Specs

Spec Sheet:

Download

Installation Guide:

Download

User Guide:

Download
