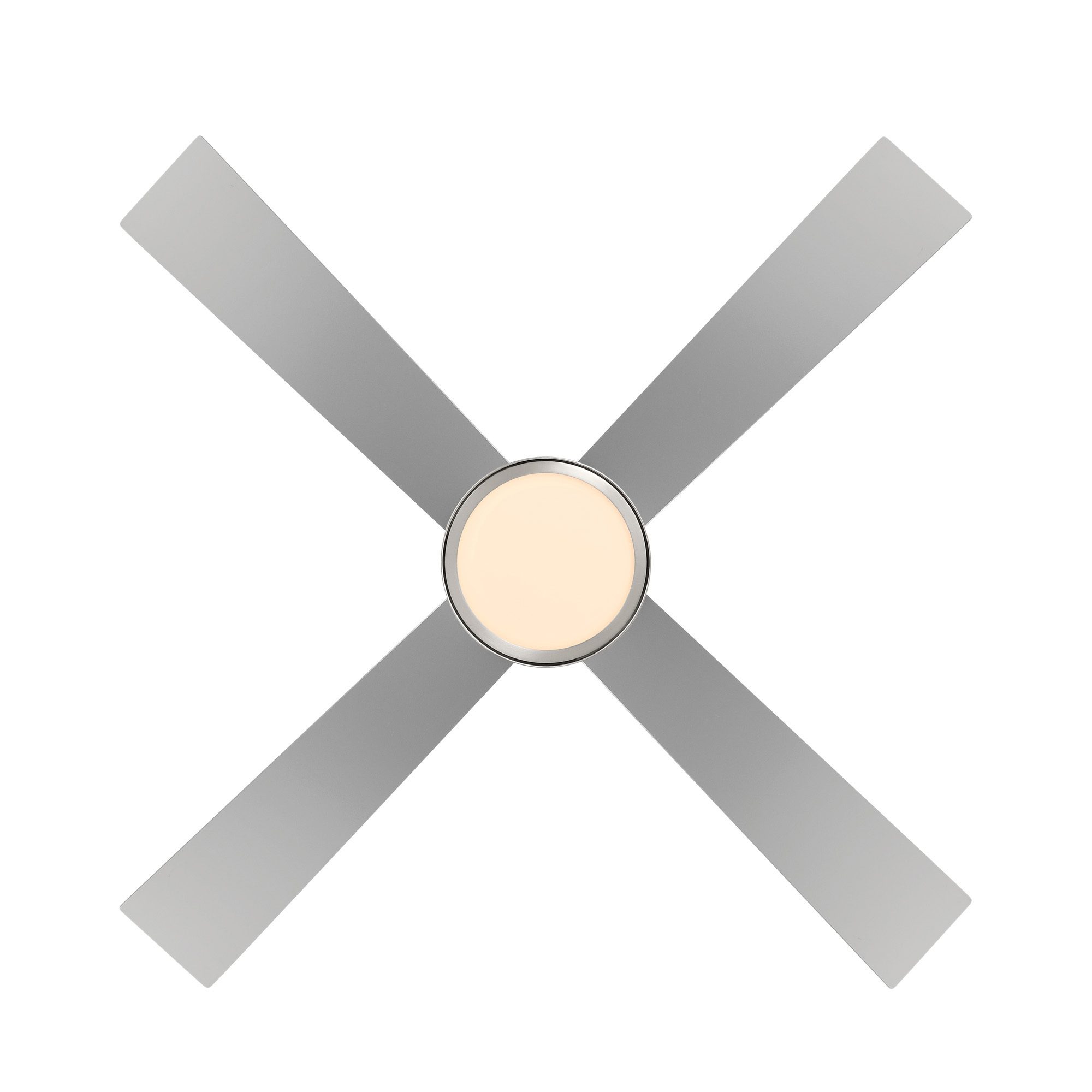

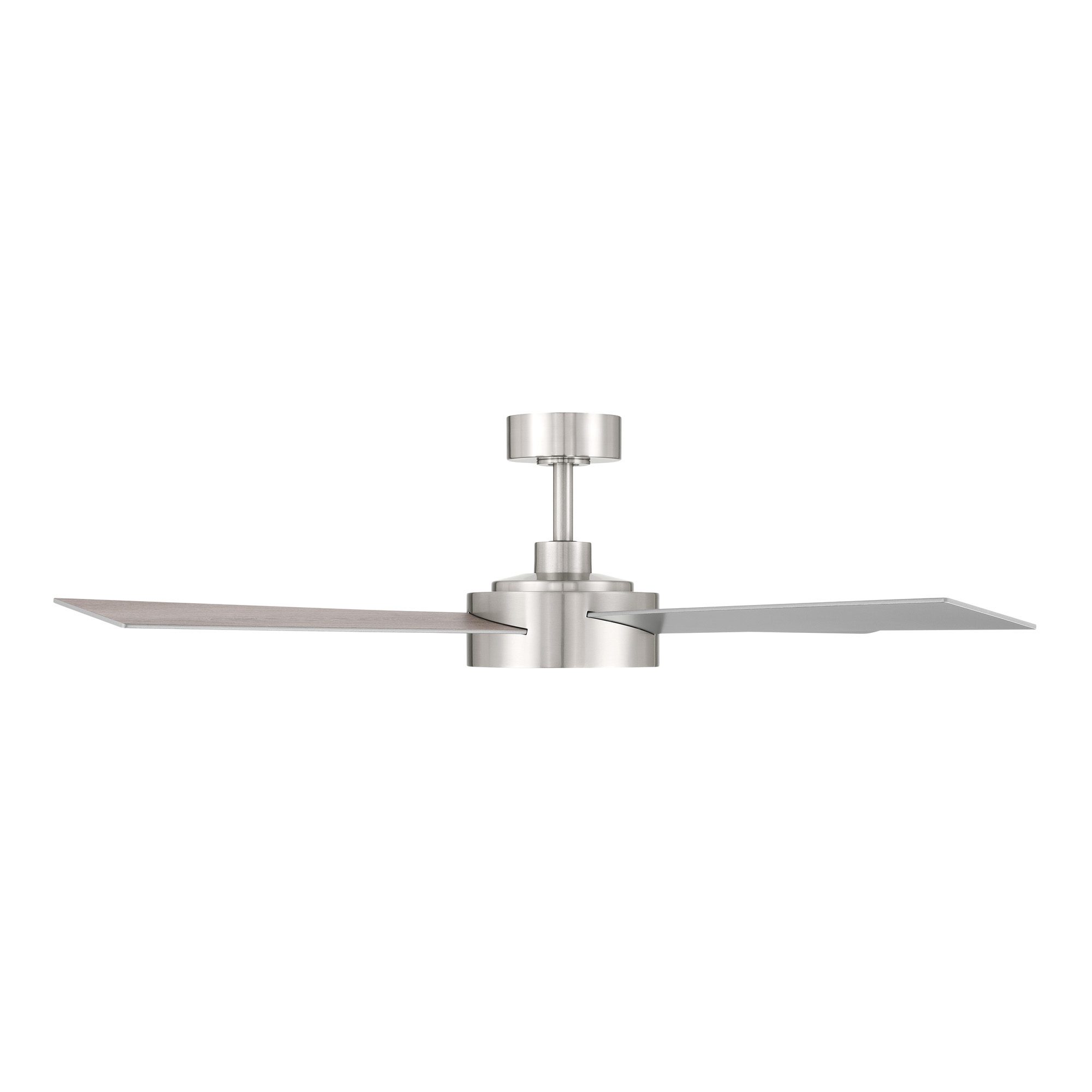

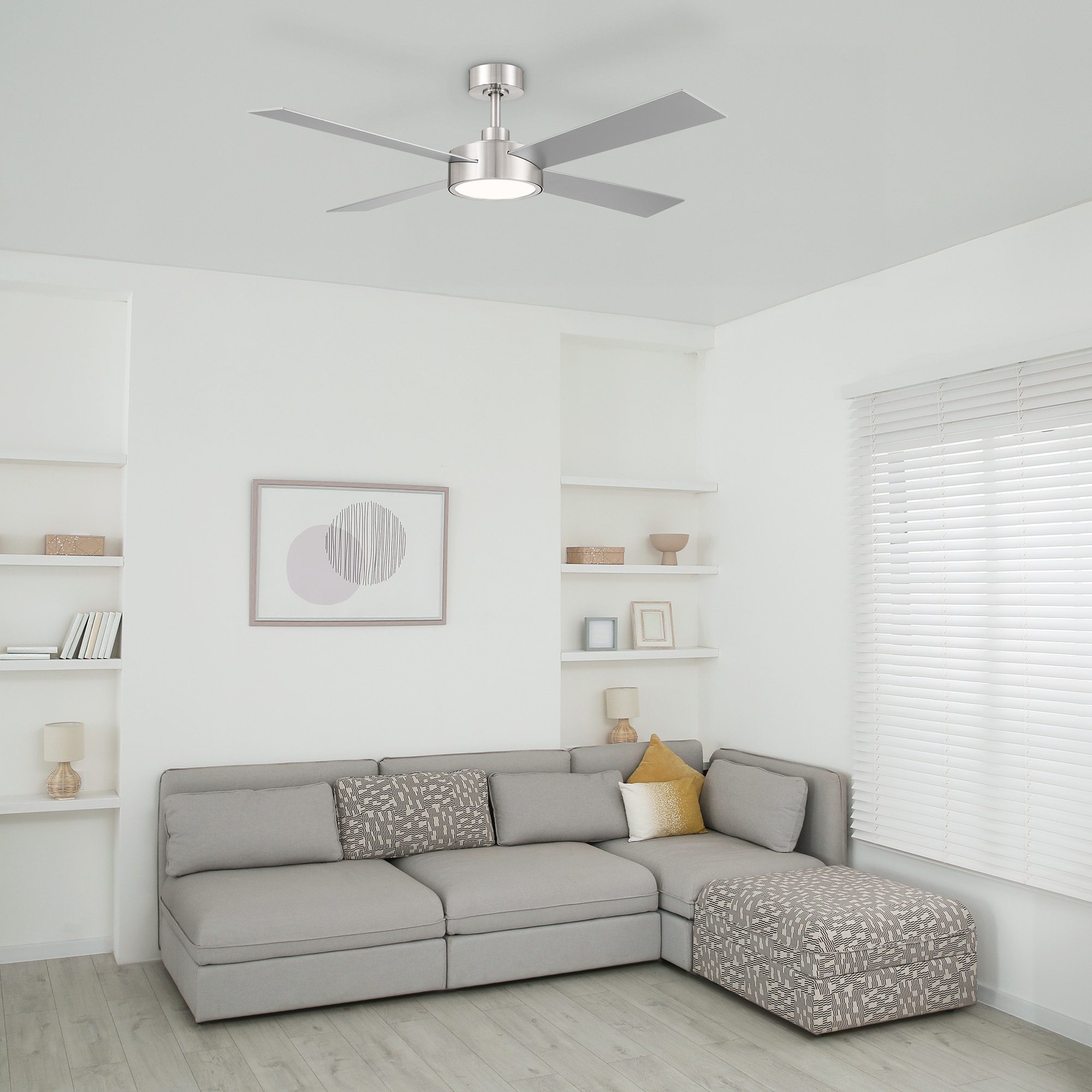

Onyo 52" Integrated LED Selectable CCT Indoor/Covered Outdoor Ceiling Fan

Item Number: FR-ONY52C5-BN Categories , , , , Tag

The Onyo collection of remote-controlled ceiling fans from Designers Fountain is damp-rated for use indoors or in covered outdoor areas. These modern fans feature 6-speed DC motors that produce a max airflow of 4,969 CFMs. Each of the 4 blades are reversible, with silver on one side and pearl gray on the other. The integrated LED light kit will not only save you money, but it also provides 5 CCT selections (2700K, 3000K, 35000K, 4000K, and 5000K) and 7 RGB color selections (red, orange, yellow, green, blue, indigo, and purple). Onyo is recommended for rooms of 400 square feet or less, and should be hardwired to an in-ceiling power source of 120V. Installation is a breeze with the included instructions and mounting/wiring hardware right in the box.

Shade Material

PS

Shade Open

No

Dampness Rating

Damp

Light Source

Integrated LED

Wattage

19

Voltage

120

Dimming

Yes

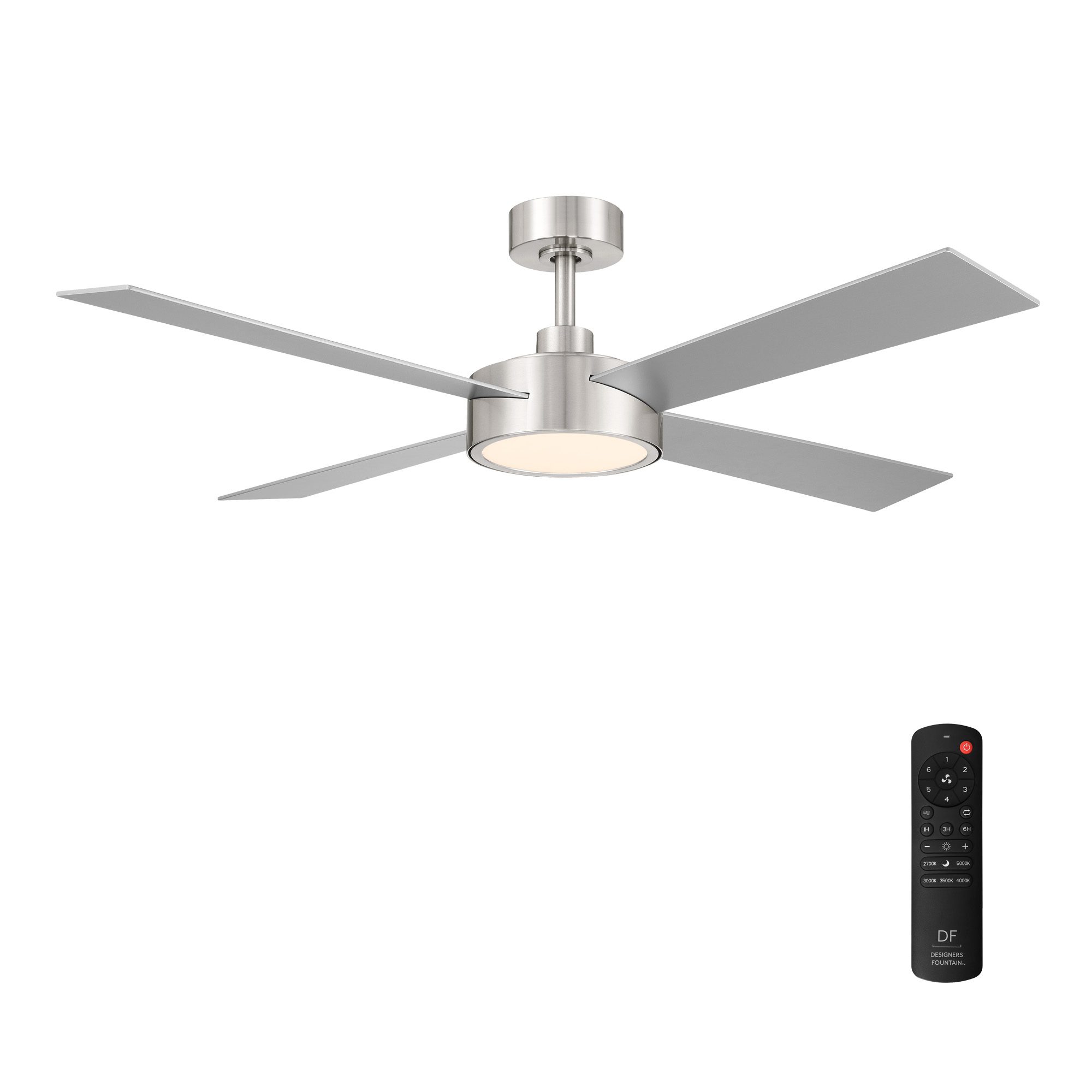

Modern brushed nickel fan for indoor and covered outdoor use

Six-speed fan with DC motor creates a max airflow of 4,969 CFM

Integrated LED produces 1450 lumens with 5 CCT selections

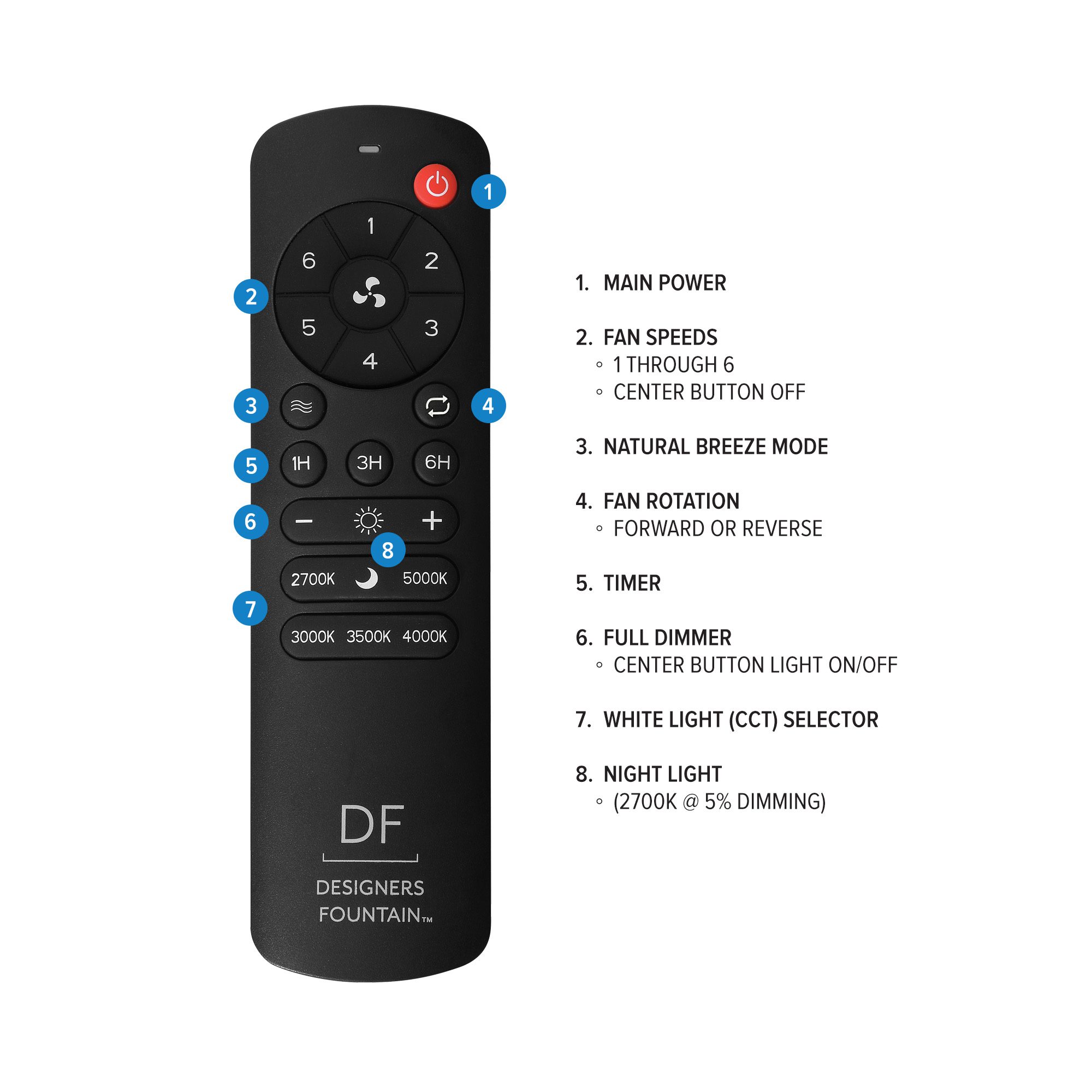

Included remote controls fan speed, dimming, color and CCT selection, and many more features

LED supports 5 CCT settings: 2700K, 3000K, 3500K, 4000K, and 5000K

Choose from 5 CCT settings: 2700K, 3000K, 3500K, 4000K, and 5000K

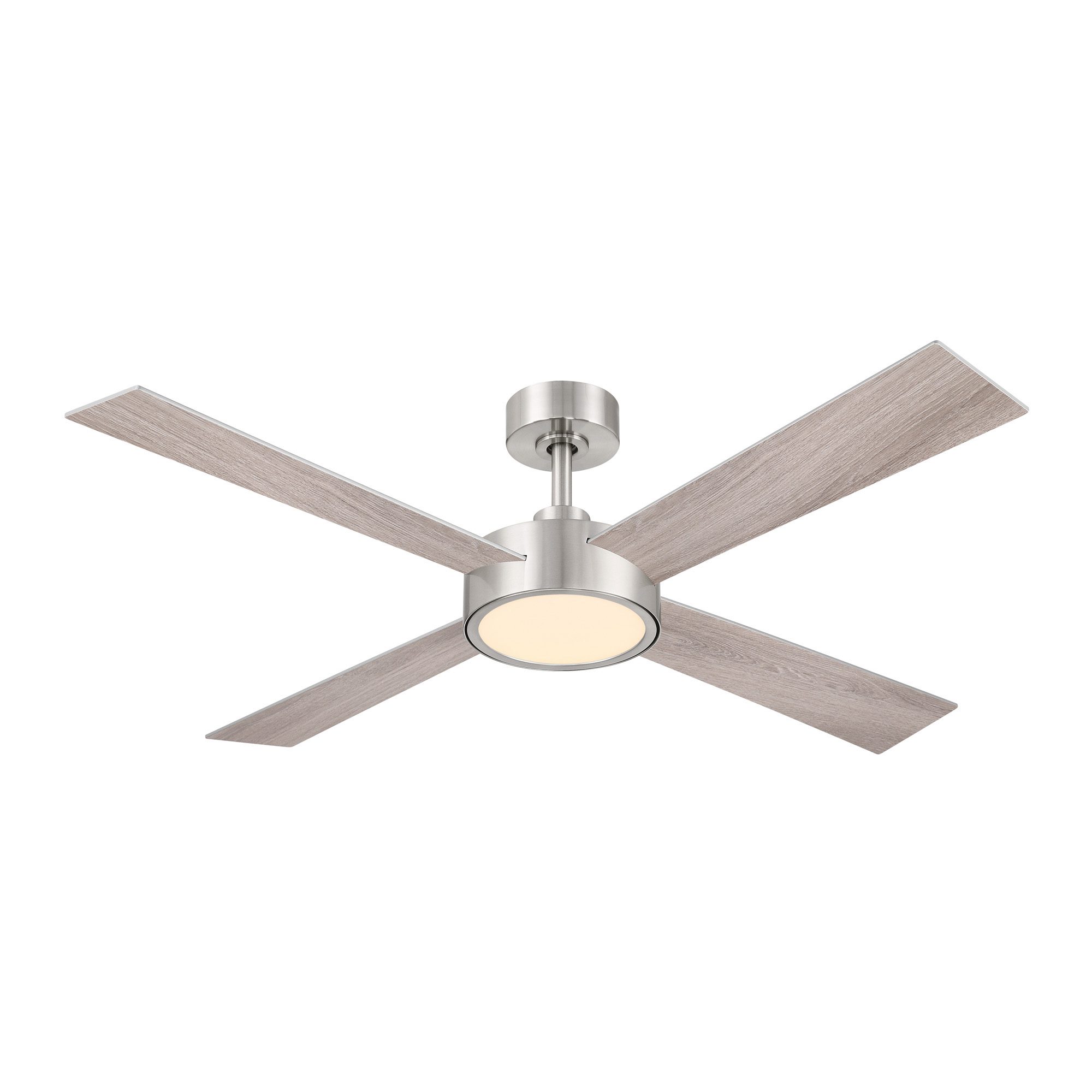

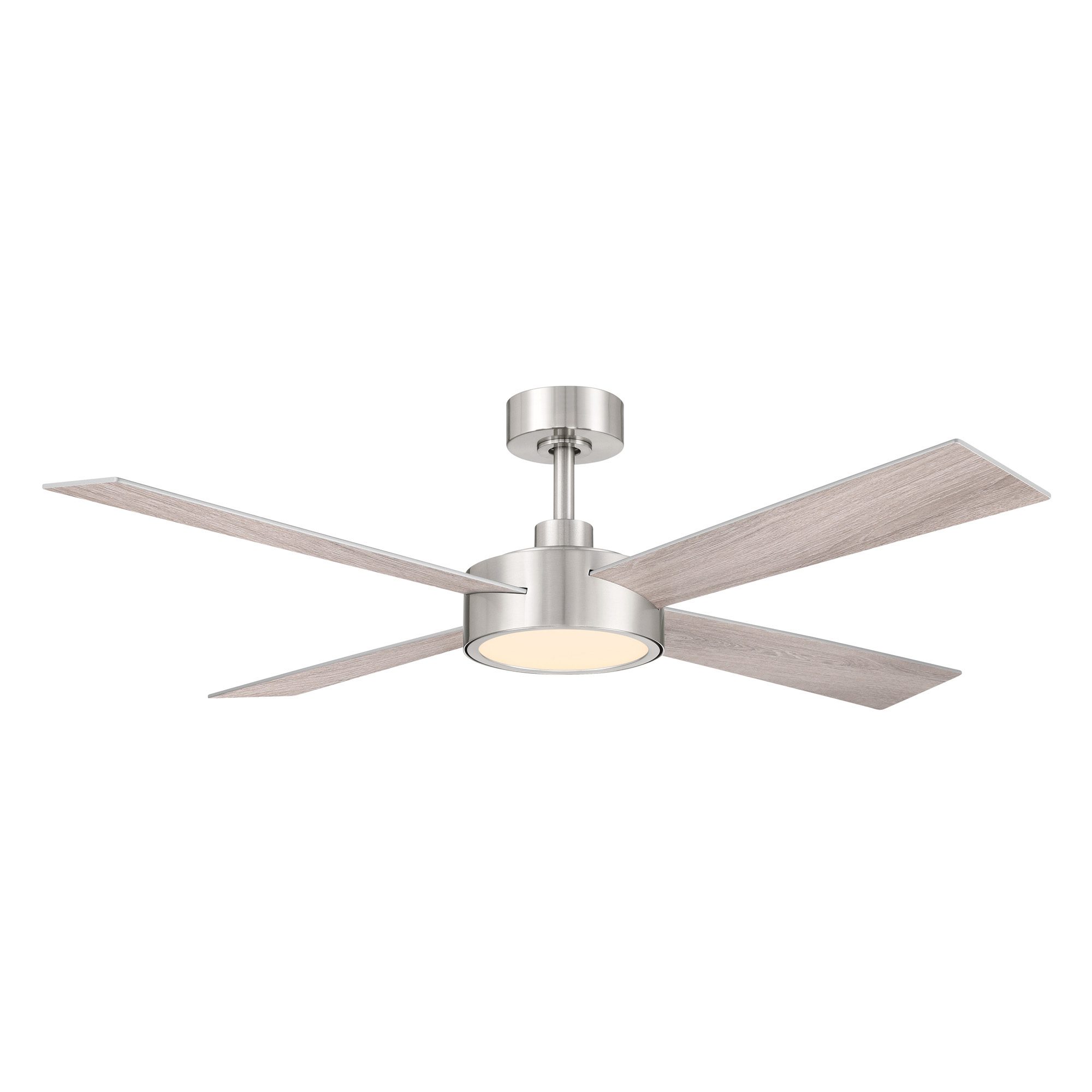

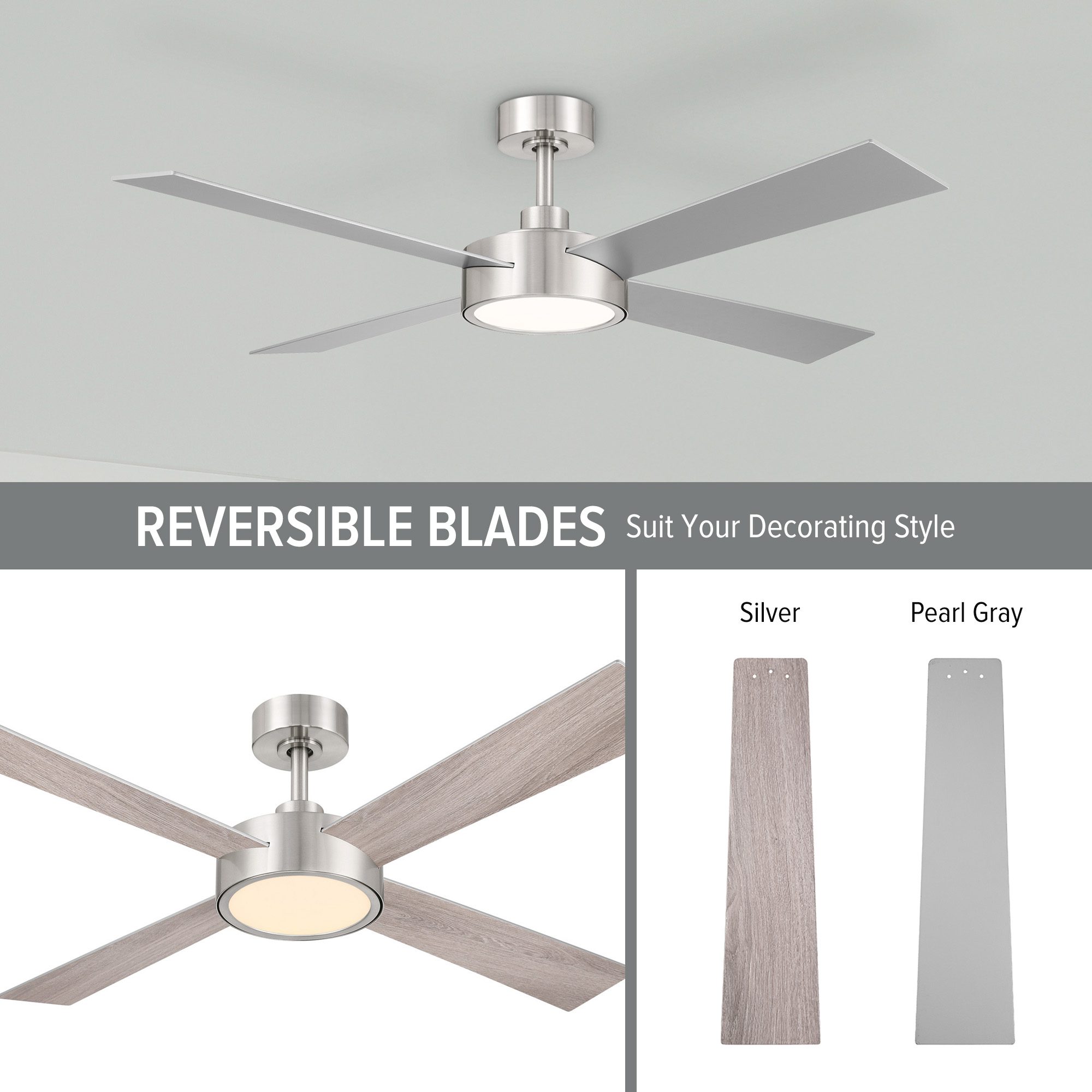

The 4 reversible plywood blades are silver on one side and pearl gray on the other

Recommended for a room of 400 sq. ft. or less

Accommodates a sloped ceiling of up to 15 degrees

Damp rated for indoor and covered outdoor installation

Hardwire to a 120-Volt in-ceiling power source

Easy-to-follow installation instructions, mounting hardware, and wiring hardware included in the box

Limited warranties for the following durations: 10 years for the fan, 3 years for the LED light kit, and 1 year for all other fan components

UPC

46335128545

Location

Indoor/Covered Outdoor

Warranty

Limited 10-year

Electrical Certification

cETLus

LED CRI

90+

LED Life (hours)

30,000

LED Replacement Wattage

120

Lumens

1450

Efficacy

76

CCT

Selectable 5CCT

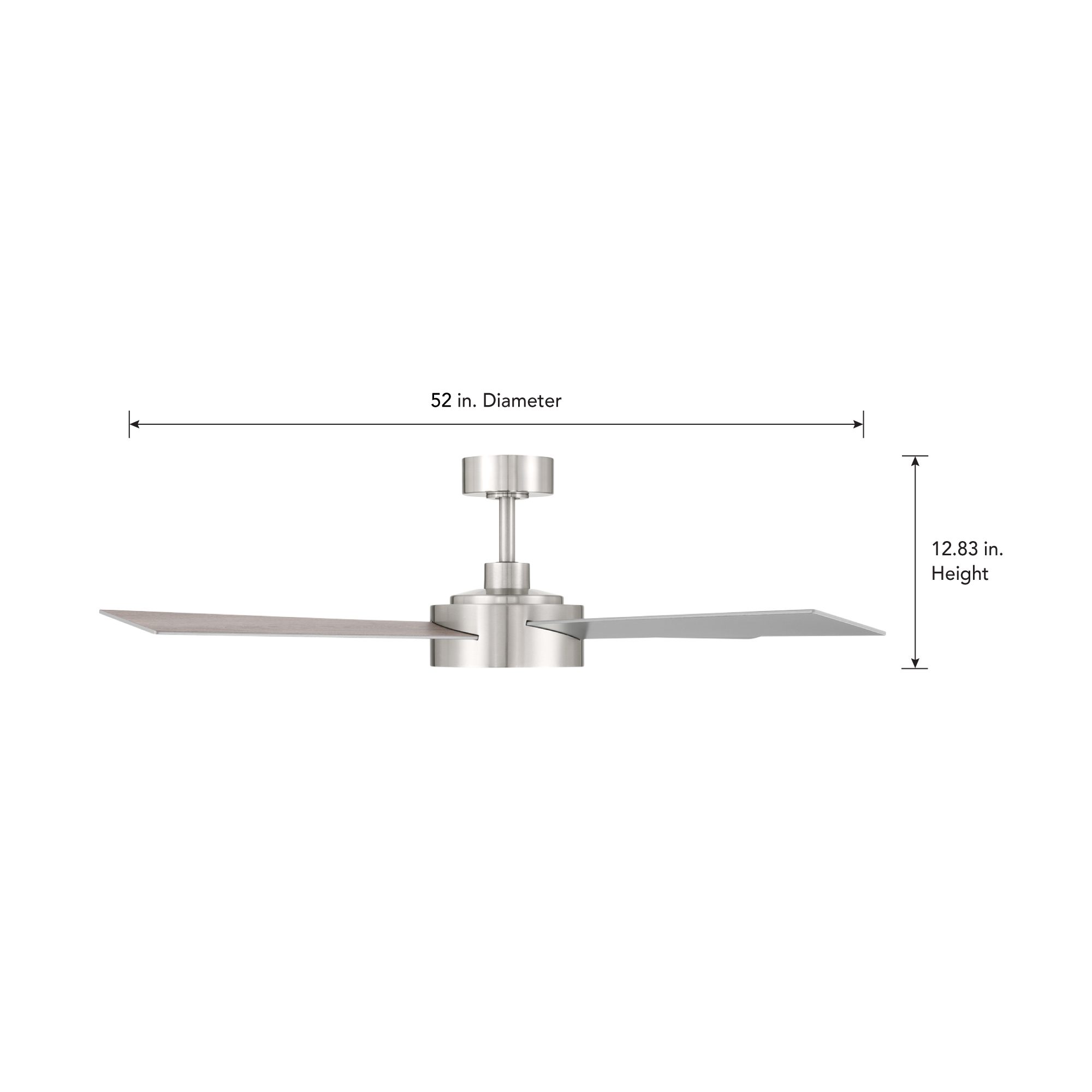

Fixture Diameter (in)

52

Fixture Height (in)

12.8

Canopy Width (in)

5.9

Canopy Depth (in)

5.9

Canopy Height (in)

2.3

Net Weight (lb)

13.2

Slope Angle

15

Pull Chain

No

Remote

Yes

App / Voice

No

Motor Type

DC

RPM Range

102-195

# of Speeds

6

Recommended Room Size

400

Max Airflow (CFM)

4969

Blade Finish

Reversible (S/PG)

Blade Material

Plywood

# of Blades

4

  • Modern brushed nickel fan for indoor and covered outdoor use
  • Six-speed fan with DC motor creates a max airflow of 4,969 CFM
  • Integrated LED produces 1450 lumens with 5 CCT selections
  • Included remote controls fan speed, dimming, color and CCT selection, and many more features
  • LED supports 5 CCT settings: 2700K, 3000K, 3500K, 4000K, and 5000K
  • Choose from 5 CCT settings: 2700K, 3000K, 3500K, 4000K, and 5000K
  • The 4 reversible plywood blades are silver on one side and pearl gray on the other
  • Recommended for a room of 400 sq. ft. or less

Modern brushed nickel fan for indoor and covered outdoor use

Six-speed fan with DC motor creates a max airflow of 4,969 CFM

Integrated LED produces 1450 lumens with 5 CCT selections

Included remote controls fan speed, dimming, color and CCT selection, and many more features

LED supports 5 CCT settings: 2700K, 3000K, 3500K, 4000K, and 5000K

Choose from 5 CCT settings: 2700K, 3000K, 3500K, 4000K, and 5000K

The 4 reversible plywood blades are silver on one side and pearl gray on the other

Recommended for a room of 400 sq. ft. or less

Accommodates a sloped ceiling of up to 15 degrees

Damp rated for indoor and covered outdoor installation

Hardwire to a 120-Volt in-ceiling power source

Easy-to-follow installation instructions, mounting hardware, and wiring hardware included in the box

Limited warranties for the following durations: 10 years for the fan, 3 years for the LED light kit, and 1 year for all other fan components

Product Info

SKU FR-ONY52C5-BN Style: , , , , Collection:

The Onyo collection of remote-controlled ceiling fans from Designers Fountain is damp-rated for use indoors or in covered outdoor areas. These modern fans feature 6-speed DC motors that produce a max airflow of 4,969 CFMs. Each of the 4 blades are reversible, with silver on one side and pearl gray on the other. The integrated LED light kit will not only save you money, but it also provides 5 CCT selections (2700K, 3000K, 35000K, 4000K, and 5000K) and 7 RGB color selections (red, orange, yellow, green, blue, indigo, and purple). Onyo is recommended for rooms of 400 square feet or less, and should be hardwired to an in-ceiling power source of 120V. Installation is a breeze with the included instructions and mounting/wiring hardware right in the box.

Shade Material

PS

Shade Open

No

Dampness Rating

Damp

Light Source

Integrated LED

Wattage

19

Voltage

120

Dimming

Yes

Modern brushed nickel fan for indoor and covered outdoor use

Six-speed fan with DC motor creates a max airflow of 4,969 CFM

Integrated LED produces 1450 lumens with 5 CCT selections

Included remote controls fan speed, dimming, color and CCT selection, and many more features

LED supports 5 CCT settings: 2700K, 3000K, 3500K, 4000K, and 5000K

Choose from 5 CCT settings: 2700K, 3000K, 3500K, 4000K, and 5000K

The 4 reversible plywood blades are silver on one side and pearl gray on the other

Recommended for a room of 400 sq. ft. or less

Accommodates a sloped ceiling of up to 15 degrees

Damp rated for indoor and covered outdoor installation

Hardwire to a 120-Volt in-ceiling power source

Easy-to-follow installation instructions, mounting hardware, and wiring hardware included in the box

Limited warranties for the following durations: 10 years for the fan, 3 years for the LED light kit, and 1 year for all other fan components

UPC

46335128545

Location

Indoor/Covered Outdoor

Warranty

Limited 10-year

Electrical Certification

cETLus

LED CRI

90+

LED Life (hours)

30,000

LED Replacement Wattage

120

Lumens

1450

Efficacy

76

CCT

Selectable 5CCT

Fixture Diameter (in)

52

Fixture Height (in)

12.8

Canopy Width (in)

5.9

Canopy Depth (in)

5.9

Canopy Height (in)

2.3

Net Weight (lb)

13.2

Slope Angle

15

Pull Chain

No

Remote

Yes

App / Voice

No

Motor Type

DC

RPM Range

102-195

# of Speeds

6

Recommended Room Size

400

Max Airflow (CFM)

4969

Blade Finish

Reversible (S/PG)

Blade Material

Plywood

# of Blades

4

Shade

Shade Material

PS

Shade Open

No

  • Fixture Width (in)
    N/A”
  • Fixture Height (in)
    12.8″
  • Fixture Depth (in)
    N/A”
  • Maximum Fixture Height (in)
    N/A”
  • Fixture Extension (in)
    N/A”
  • Shade Width (in)
    N/A”
  • Shade Height (in)
    N/A”
  • Shade Depth (in)
    N/A”
  • Canopy Width (in)
    5.9″
  • Canopy Depth (in)
    5.9″
  • Canopy Height (in)
    2.3″
  • Backplate Width (in)
    N/A”
  • Backplate Depth (in)
    N/A”
  • Backplate Height (in)
    N/A”
  • Net Weight (lb)
    13.2 lbs
Fixture Diameter (in)

52

Fixture Height (in)

12.8

Canopy Width (in)

5.9

Canopy Depth (in)

5.9

Canopy Height (in)

2.3

Net Weight (lb)

13.2

  • Light Source
    Integrated LED
  • Bulbs Required
    N/A
  • Socket Base
    N/A
  • Bulbs Included
    N/A
  • Wattage
    19
  • Voltage
    120
  • Dimming
    Yes
  • Led Cri
    90+
  • Led Life Hours
    30,000
  • Lumens
    1450
  • Efficacy
    76
  • Cct
    Selectable 5CCT
  • Rgb Color
    N/A
  • Smart Technology
    N/A
  • Dark Sky
    N/A
  • Motion Detector
    N/A
Light Source

Integrated LED

Wattage

19

Voltage

120

Dimming

Yes

LED CRI

90+

LED Life (hours)

30,000

LED Replacement Wattage

120

Lumens

1450

Efficacy

76

CCT

Selectable 5CCT

  • 6″ Rods
    N/A
  • 12″ Rods
    N/A
  • 18″ Rods
    N/A
  • Cords Cables
    N/A
  • Chain Length Ft (ft)
    N/A’
  • Wire Length Ft (ft)
    N/A’
  • Sloped Ceiling
    N/A
  • Mount Up Or Down
    N/A
Slope Angle

15

  • Dampness Rating
    Damp
  • Warranty
    Limited 10-year
  • Electrical Certification
    cETLus
  • Ada
    N/A
  • Energy Star
    N/A
  • Title 24
    N/A
  • Title 20
    N/A
Dampness Rating

Damp

Warranty

Limited 10-year

Electrical Certification

cETLus

Specs

Spec Sheet:

Download

Installation Guide:

Download

User Guide:

Download
